Location:  products -> listen Products -> LED Display Controller cards -> U-series -> U4(USB)
Memory | 2MByte |
---|---|
Adaptation | Single color,Double color |
Pixels | Single:64K ; Double:32K |
Range | Single:2048*16 2048*32 1344*48 1024*64   Double:2048*16 1024*32 672*48 512*64 |
Function | Multi area display/Multi language version |
Program NO. | Support 128 program,Each program 16 zones |
Area type | Text/Image/Animation/Time/Analog clock/Timer/Temperature |
Frame mode | Program Water frame/Area Water frame |
Clock | Digital clock/Analog clock/Countup/Countdown |
Communication | USB port |
Display Port | 2*HUB08 &NBSP 4*HUB12 |
Sensor | Temperature Sensor |
Brightness | 16 Level brightness, Automatically adjust the period of time |
Remote | Support Timing Switch/Software Switch |
Voltage | 3.5V~6V |
Max Power | <1W |
Temperature | -40℃-85℃ |
Secondary Development | DLL |
Software | LED Player 6.0 |

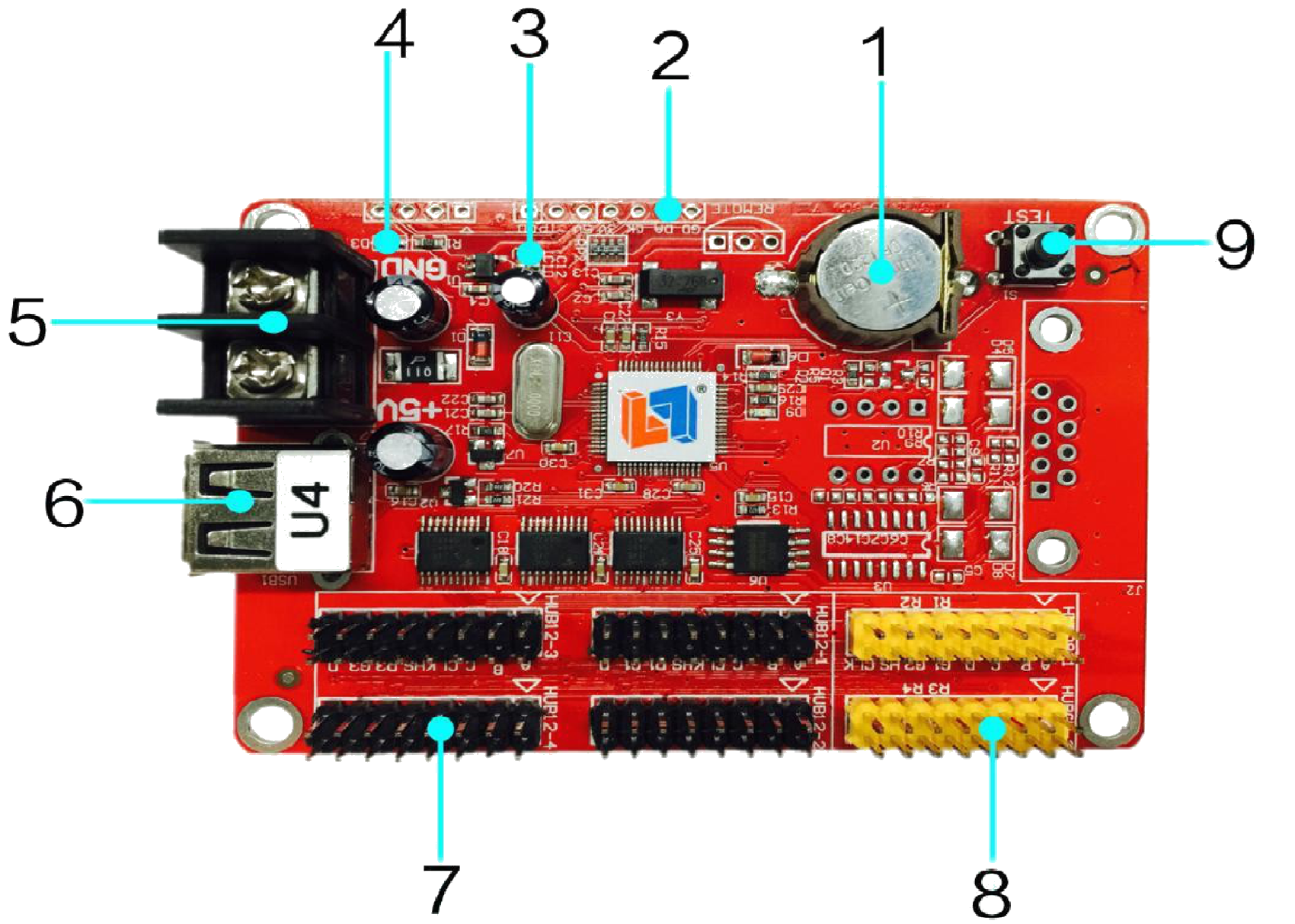

Number | Name | Description |
---|---|---|
1 | RTC Button Battery | RTC supplying battery, voltage3V |
2 | Sensor Interface | Connect temperature sensor |
3 | Operation | Light Show operating status |
4 | 5V power Light | Show power status |
5 | 5V Power Port | Wide voltage 3.5V-6V |
6 | USB Interface | USB interface |
7 | HUB12 Interface | Connect HUB12 Interface |
8 | HUB08 Interface | Connect HUB08 Interface |
9 | Multi-functional Button | Functions: 1.test LED screen 2.factory data reset |
