    G1(GPRS)-CARD SPECIFICATION
    FEATURES
    1. The software no need to choose model;
    2. Support DIY LOGO when power on ;
    3. Support USB-disk to read back the parameter ;
    4. Unique preview window can be separated ;
    5. Concise and beautiful new UI design, more easier and flexible to use ;
    6. Support regional automatic alignment, support regional adsorption function;
    G1(GPRS)Full Descrition
    PRODUCT MODEL G1 GPRS Controller
    FOR Screens 3.75,7.62, P10 to P20
    PIXEL(Resolution): Single color :32(H)*256(W) ,
    Double color 8K ,32(H)*128(W)
    COLOR: RED,GREEN,YELLOW
    USAGE Outdoor, Indoor, Semi-outdoor
    Communication Mode Wireless GPRS
    HUB Port No. 1*(HUB08),2*(HUB12)
    Software Function Multi-program/multi-areas’ display
    Program No. Support 128 programs,16 areas for each program
    Area Type Text/Image/ digital clock/analogue clock /timer/animation
    Frame Mode Most advanced colorful / magic graphics frame/Area frame
    Time Mode Analogue clock/digital clock; Positive
    timing and counting-down timer
    Date Mode MM/DD/YY, YYYY-MM-DD,DD/MM/YYYY
    Remote control Remote control by GPRS WEB Server
    Brightness Adjustment Yes
    Power on/off Mode Auto powered on/off and timing powered on
    Voltage5V(3.5V~6.5V )
    Maximum power≤1.5W
    Temperature-40°C~85°C

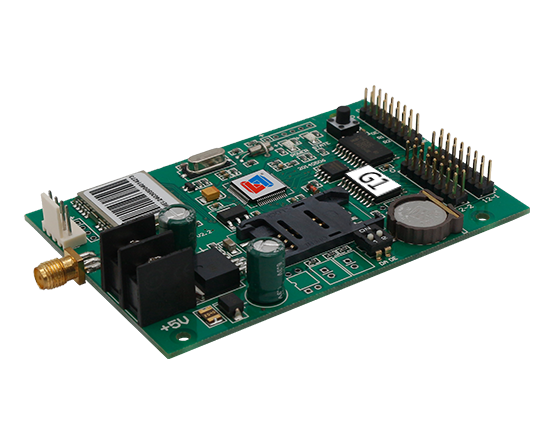

    HARDWARE DETAILS
    Item Interface Name xDescription
    1 GMS antenna interface Connect to the antenna
    2 5V Power supply Voltage range support 3.5V-6V
    3 SIM card slot Put the SIM card inside tray
    4 Dial switch Adjust the baud-rate
    5 HUB12 Port Connect to modules with HUB12 port
    6 HUB08 Port Connect to modules with HUB08 port
    7 Multi-function button 1.Test LED panel 2.Reset to defaults
    8 Status indicator Indicating working state
    9 IMEI Number Same with the terminal number in server
    DOWNLOADS
    W3Schools

    G1(GPRS)-Specification(download)
