G4(GPRS)-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| PRODUCT MODEL | G4 GPRS Controller |
|---|---|
| FOR Screens | 3.75,7.62, P10 to P20< |
| PIXEL(Resolution): | Single color 64K, 64(H)*1024(W) |
| Duble color | 32K, 64(H)*512(W) |
| COLOR: | RED,GREEN,YELLOW |
| USAGE | Outdoor, Indoor, Semi-outdoor |
| Communication Mode | Wireless GPRS |
| HUB Port No. | 2*(HUB08),4*(HUB12) |
| Software Function | Multi-program/multi-areas’ display |
| Program No. | Support 128 programs,16 areas for each program |
| Area Type | Text/Image/ digital clock/analogue clock /timer/animation |
| Frame Mode | Most advanced colorful / magic graphics frame/Area frame |
| Time Mode | Analogue clock/digital clock; Positive timing and counting-down timer |
| Date Mode | MM/DD/YY, YYYY-MM-DD,DD/MM/YYYY |
| Remote control | Remote control by GPRS WEB Server |
| Brightness | Adjustment Yes |
| Power on/off Mode | Auto powered on/off and timing powered on |
| Voltage | 5V(3.5V~6.5V ) |
| Maximum power | ≤1.5W |
| Temperature | -40°C~85°C |

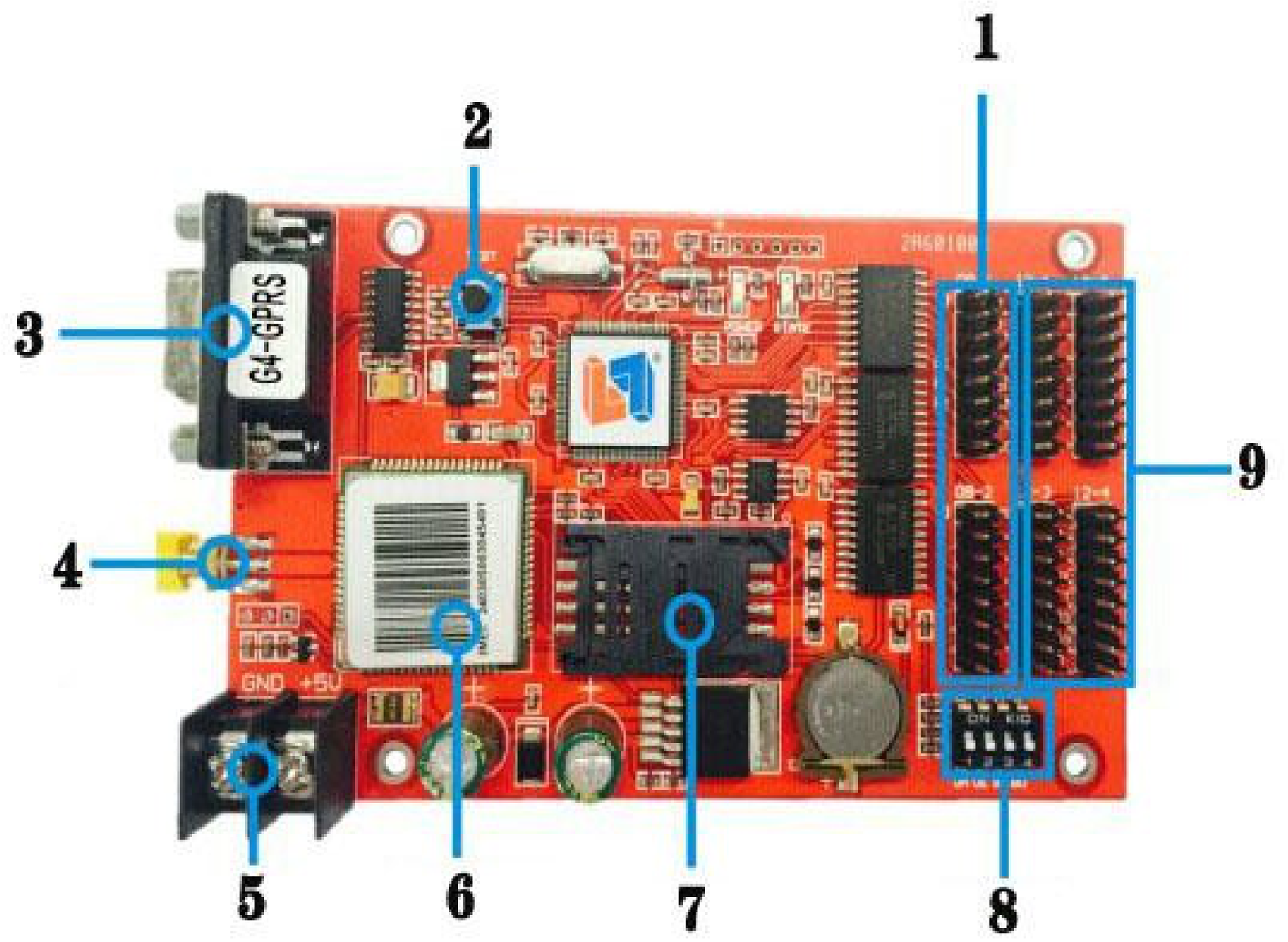

HARDWARE DETAILS
.png){kind=spacer}
| Item | Interface Name | Description |
|---|---|---|
| 1 | HUB08 Port | Connect to modules with HUB08 port |
| 2 | Multi-function button | 1.Test LED panel 2.Reset to defaults |
| 3 | DB9 port | DB9 serial port |
| 4 | GMS antenna interface | Connect to the antenna |
| 5 | 5V Power supply Voltage | range support 3.5V-6V |
| 6 | IMEI Number | Same with the terminal number in server |
| 7 | SIM card slot | Put the SIM card inside tray |
| 8 | Dial switch | Adjust the baud rate |
| 9 | HUB12 Port | Connect to modules with HUB12 port |
DOWNLOADS
G4(GPRS)-Specification(download)
