LS-Q3C-2015-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Product Name: | LS-Q3 Full Color Asynchronous LED MediaPlayer |
|---|---|
| Max.Pixels | 8000*600 pixels |
| CPU: | A8 Dual-core 1.2GHZ |
| Memory: | 4G(standard),32G(optional)Refresh rate Max.16KHZGrey level 65536 |
| Scan mode : | Indoor/outdoor, regular routes, smart scanning setting |
| Communication port: | LAN/U-Disk/SD card |
| Communication type: | LAN,WAN,GPRS,3G,WIFI |
| Remote management: | Support cluster release management remotely; support upgrade system remotely |
| Audio port: | Onboard integrated sound card,with 6W amplifier, the R/L analog audio |
| Video decoding: | 1080P hardware decoding |
| Video format: | MOV,AVI,MP4,DVD,ASF,WMV,MKV,RM,RMVB,TS,DAT,MPG,MPEG,VOB |
| Audio format: | MPEG-1 Layer3,WMA,WMA Pro,AAC,MPEG1/2 Layer 1/2,ADPCM,OGG Vorbis, Dolby Digital AC3,Dolby Digital Plus, RA-COOK,FLAC |
| Memory port: | Provide SD card port, support Max.32G SD card; can use USB2.0 Host to expand U-disk or USB hard-disk |
| Timing play: | Support |
| Sensor port: | Support displaying temperature and humidity, auto brightness adjustment and use infrared remote to change program |
| Partition: | Divide into several areas randomly |
| Software: | LED MediaPlayer,LED-PUB |
HARDWARE DETAILS
.png)

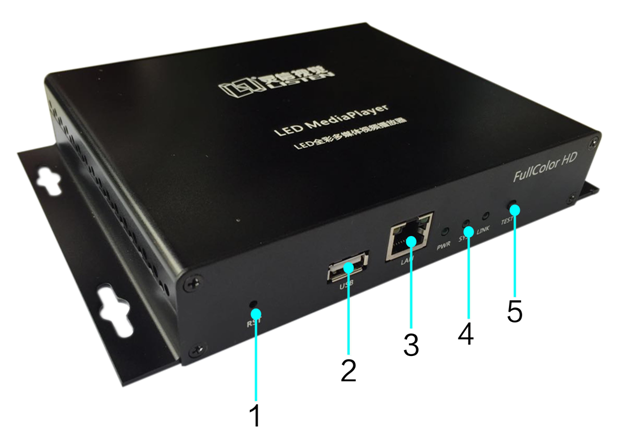

| front View | |
|---|---|
| 1 | Reset key |
| 2 | USB interface |
| 3 | 100M network interface |
| 4 | Indicator light |
| 5 | Test key |
.png)

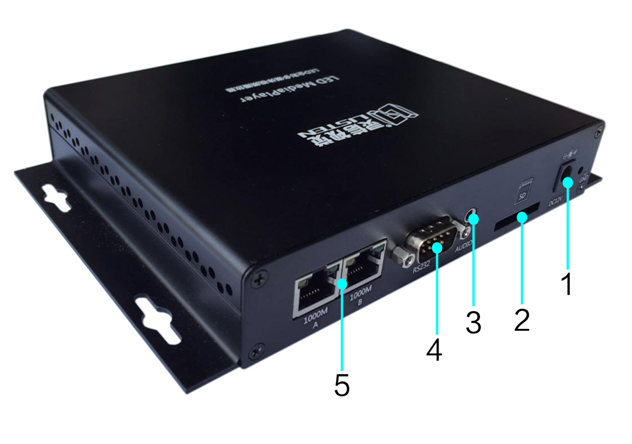

| Back view | |
|---|---|
| 1 | 12V power port |
| 2 | SD card extension interface |
| 3 | Audio interface |
| 4 | Multifunctioal controller interface |
| 5 | Gigabit interface |

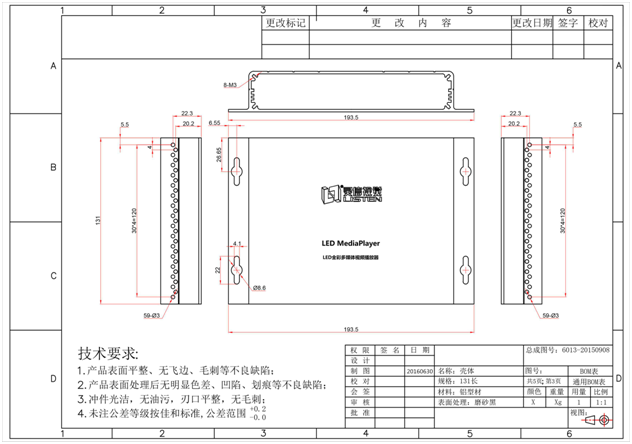

DIMENSIONAL DRAWING
.png)
DOWNLOADS
Q3C-Specification(download)
