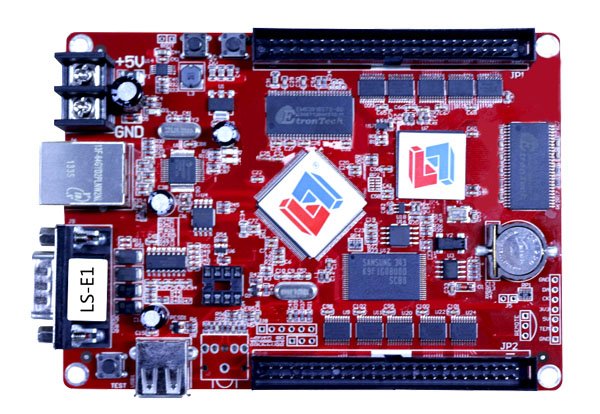

LS-E1 - CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Product type | LS-E1 |
|---|---|
| Control range Double color | 256K |
| On-load (single/dual color) | 4096*64 2048*128 1024*256 512*512 |
| Memory | 128MByte |
| application | All single/ dual color LED display |
| Software function | Cluster management/ multi-area display/ many languages |
| program | 128programs, each of it has 16 areas |
| Area type | Image& text/ subtitle/animation/digit clock/dial plate/count up-down/temperature/humiture |
| Frame | Full screen frame/ part of screen frame |
| Clock | Digit clock/analog clock/count up/ countdown |
| Communication | 100M network interface, USB, RS232，RS485 |
| Display interface | 2*50 PIN |
| Sensor | temperature sensor, humiture sensor |
| Brightness | 16level, adjusted via timing or manually |
| Remote switch | Switch on/ off via timing or software |
| Voltage | +5V |
| Max power | ＜1W |
| Working | -40℃-85℃ |
| Secondary | Complete DLL |
| Auxiliary software | LED Player 6.0 |

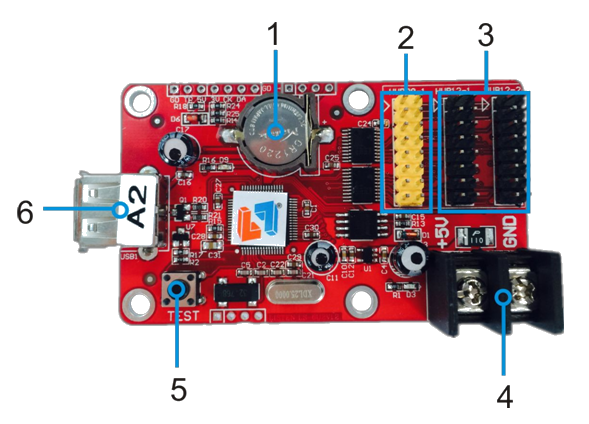

HARDWARE DETAILS
| item | interface name | description |
|---|---|---|
| 1 | RTC Button battery | RTC battery, VOLTAGE 3V |
| 2 | HUB08 Port | Connect to modules with HUB08 port |
| 3 | HUB12 Port | Connect to modules with HUB012 port |
| 4 | 5V Power supply | Voltage range support 3.5V-6V |
| 5 | Multi-function button | 1.Test LED panel 2.Reset to defaults |
| 6 | USB Port | USB Port |

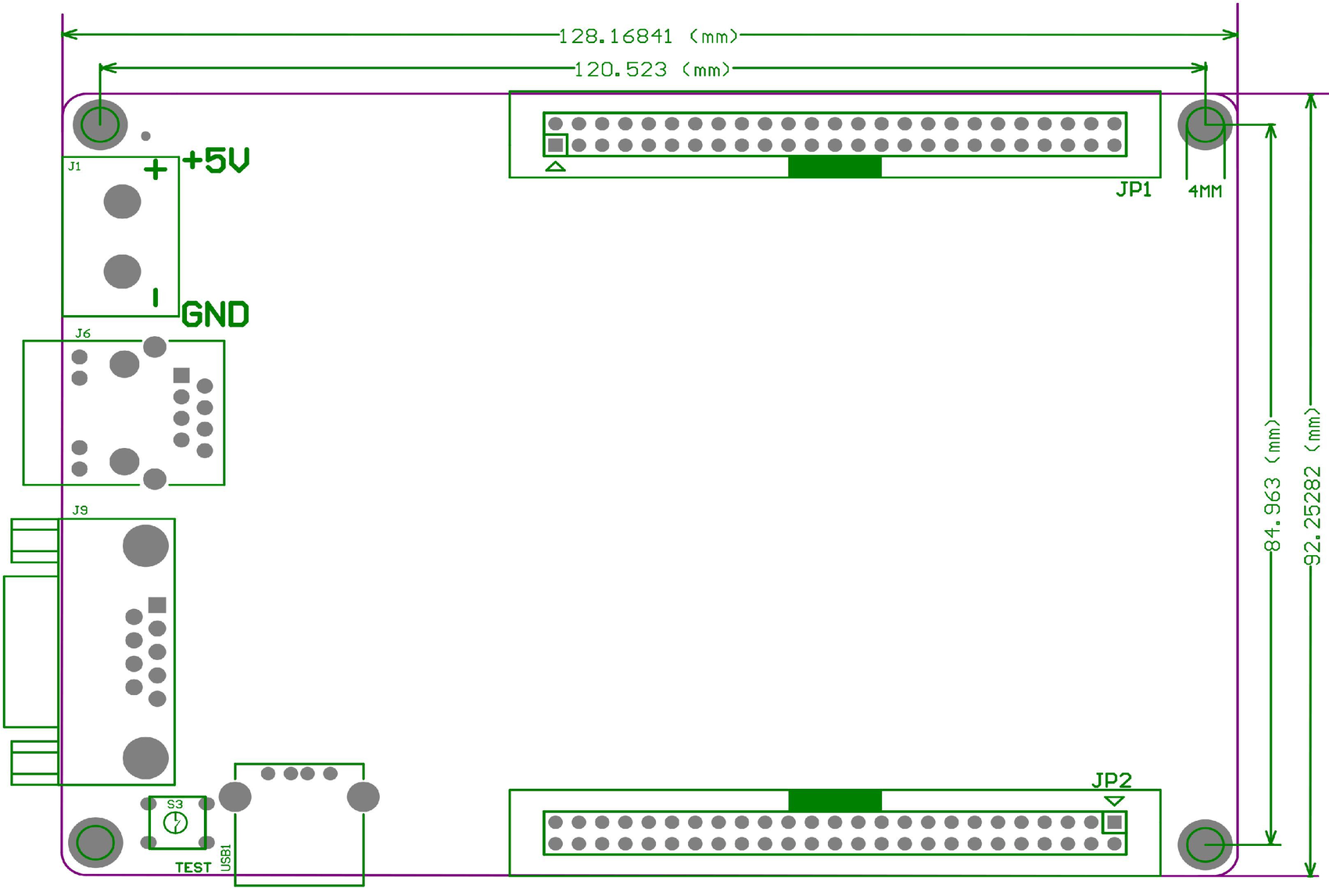

DIMENSIONAL DRAWING
.png){kind=spacer}
DOWNLOADS
E1-Specification(download)
