Location:  products -> listen Products -> LED Display Controller cards -> U-series -> U16(USB)
Memory | 2MByte |
---|---|
Adaptation | Single color,Double color |
Pixels | Single:128K,Double:64K |
Range | Single:2048*32 2048*64 1024*128 512*256   Double:2048*32 1024*64 512*128 256*256 |
Function | Multi area display/Multi language version |
Program NO. | Support 128 program,Each program 16 zones |
Area type | Text/Image/Animation/Time/Analog clock/Timer/Temperature |
Frame mode | Program Water frame/Area Water frame |
Clock | Digital clock/Analog clock/Countup/Countdown |
Communication | USB port |
Display Port | 1*50PIN |
Sensor | Temperature Sensor |
Brightness | 16 Level brightness, Automatically adjust the period of time |
Remote | Support Timing Switch/Software Switch |
Voltage | 3.5V~6V |
Max Power | <1W |
Temperature | -40℃-85℃ |
Secondary Development | DLL |
Software | LED Player 6.0 |

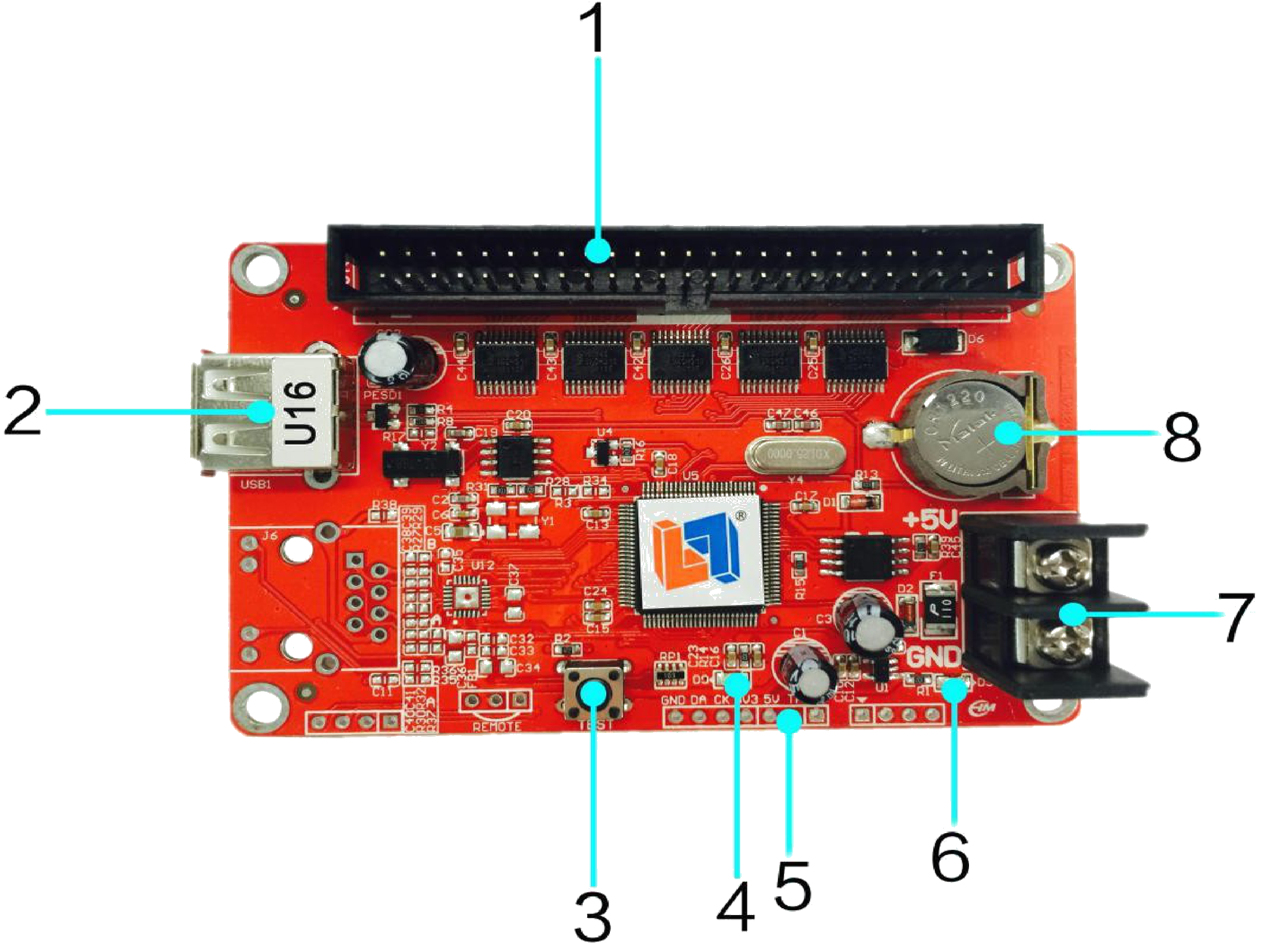

Number | Name | Description |
---|---|---|
1 | 50PIN Interface | Connect pin-board |
2 | USB Port | USB Port |
3 | Multi-functional Button | Functions: 1. test LED screen 2. factory data reset |
4 | Operation | Light Show operating status |
5 | Sensor Interface | temperature sensor |
6 | 5V Power Light | Show power status |
7 | 5V Power Port | Wide voltage3.5V-6V |
8 | RTC Button Battery | RTC supplying battery, voltage3V |
← Inforamtion given above are Mention by Listen Company Products ←
