Asynchronous system — XC2-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Memory | 2MByte |
|---|---|
| Suitable for | Seven Color and led Color modules |
| Pixels | Single 16K;Double 8K |
| Range | 1280*16 ,640*32(4 scan), 320*64(16 scan) |
| Function | Multi area display/Multi language version |
| Program NO. | Support 128 program,Each program 16 zones |
| Area type | Text/Image/Animation/Time/Analog clock/Timer/Temperature |
| Frame mode | Program Water frame/Area Water frame |
| Clock | Digital clock/Analog clock/Countup/Countdown |
| Communication | USB port |
| Display Port | 2XHUB08,2XHUB75 |
| Sensor | Temperature Sensor |
| Brightness | 16 Level brightness, Automatically adjust the period of time |
| Remote | Support Timing Switch/Software Switch |
| Voltage | 3.5V~6V |
| Max Power | <1W |
| Temperature | -40℃-85℃ |
| Secondary Development | Provied Complete DLL |
| Software | LED Player 6.0 |

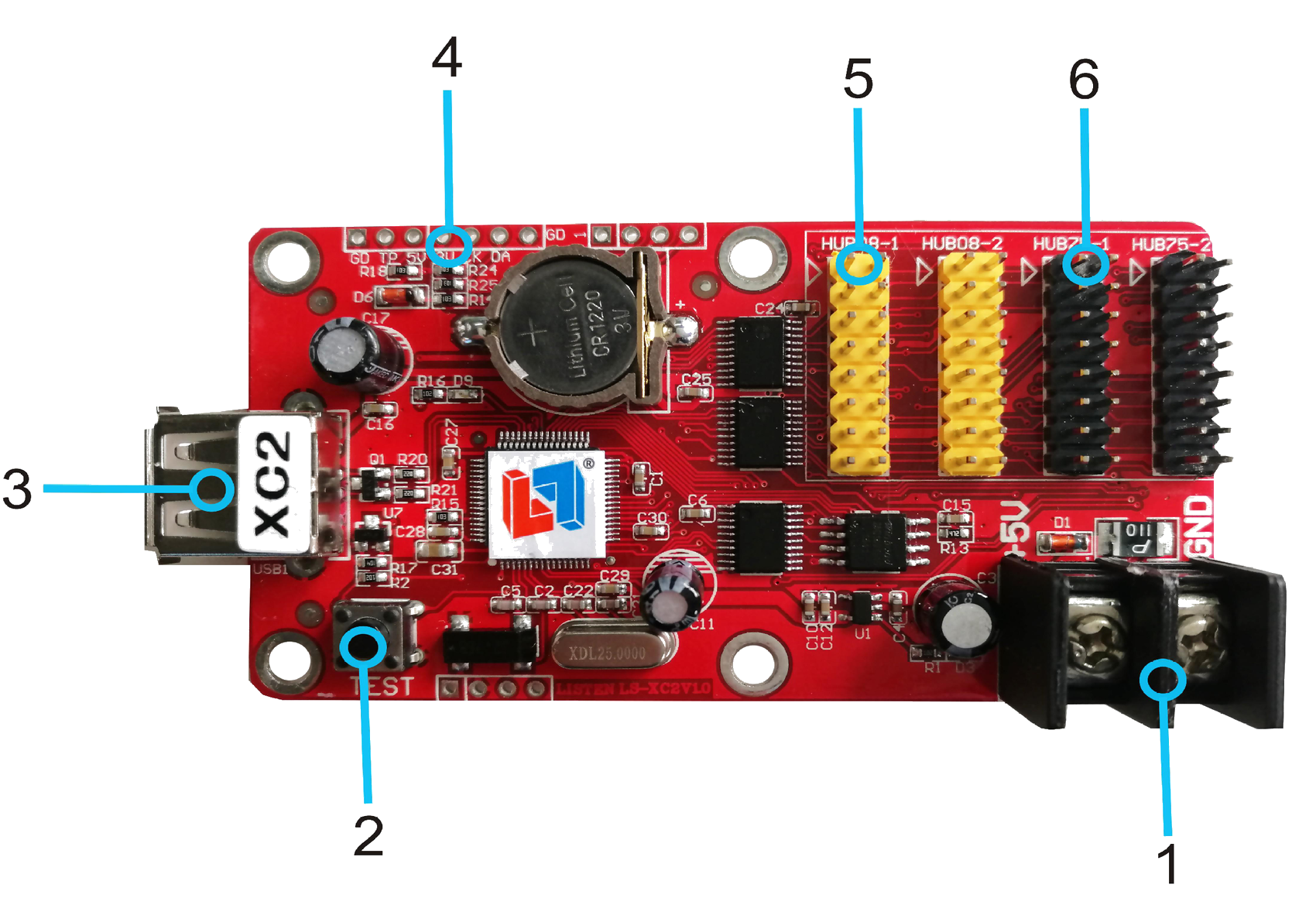

HARDWARE DETAILS
.png){kind=spacer}
| Item | Interface Name | Description |
|---|---|---|
| 1 | +5V Power Supply | Voltage range support 3.5V-6V |
| 2 | Multi-Function button | 1.Test LED panel 2.Reset to defaults |
| 3 | USB Port | USB Port |
| 4 | Sensor port | Connect temperature sensor |
| 5 | HUB08 Port | Connect to modules with HUB08 port |
| 6 | HUB75 Port | Connect to modules with HUB75 port |

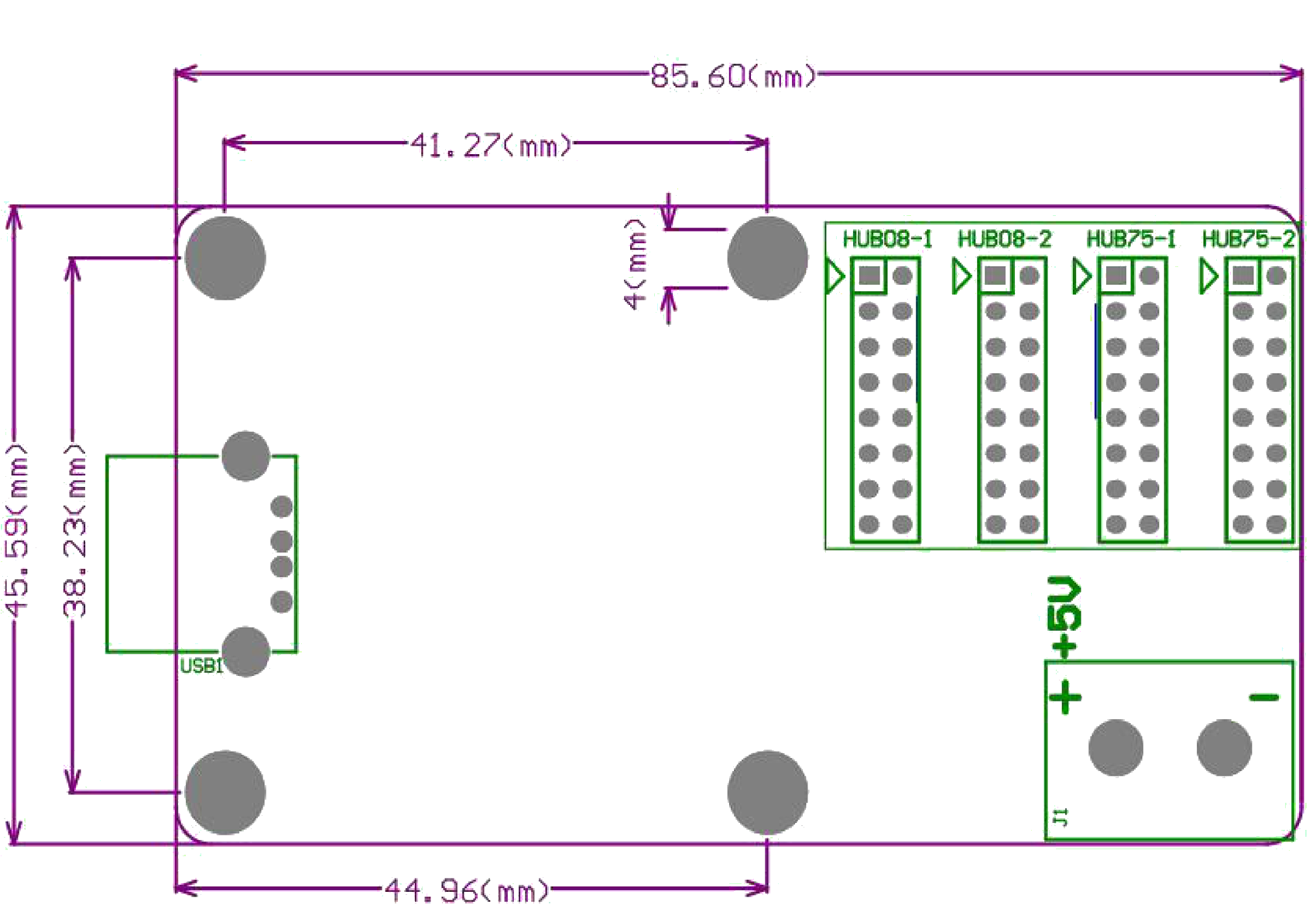

DIMENSIONAL DRAWING
.png){kind=spacer}
DOWNLOADS
Asynchronous system — XC2(download)
