LRS-200-5-CARD SPECIFICATION
FEATURES
• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• 1U low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption<0.75W
• 100% full load burn-in test
• High operating temperature up to 70℃
• Operating altitude up to 5000 meters (Note.8)
• High efficiency, long life and high reliability
• 3 years warranty

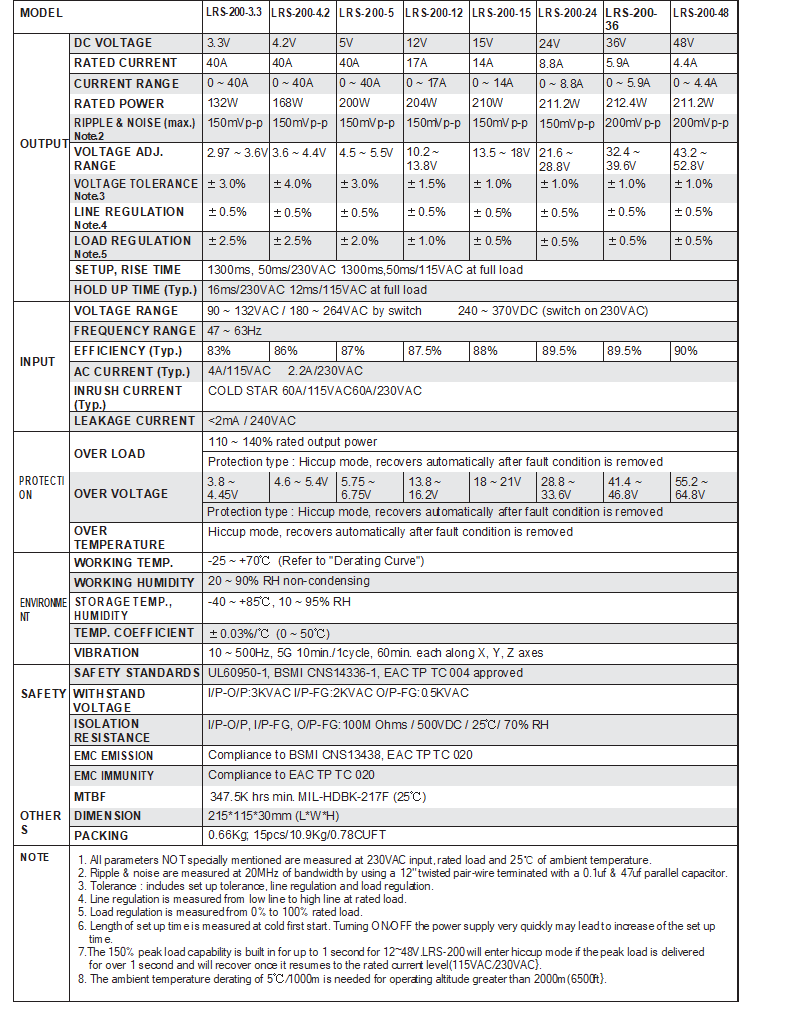

SPECIFICATION DETAILS

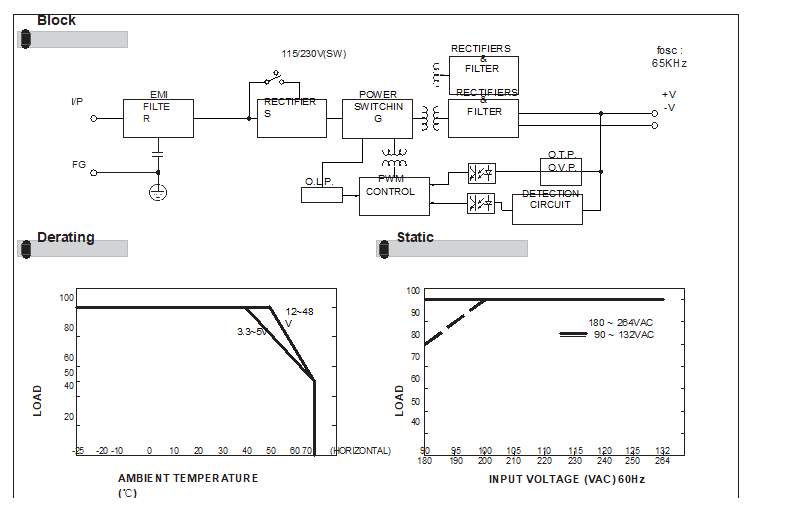

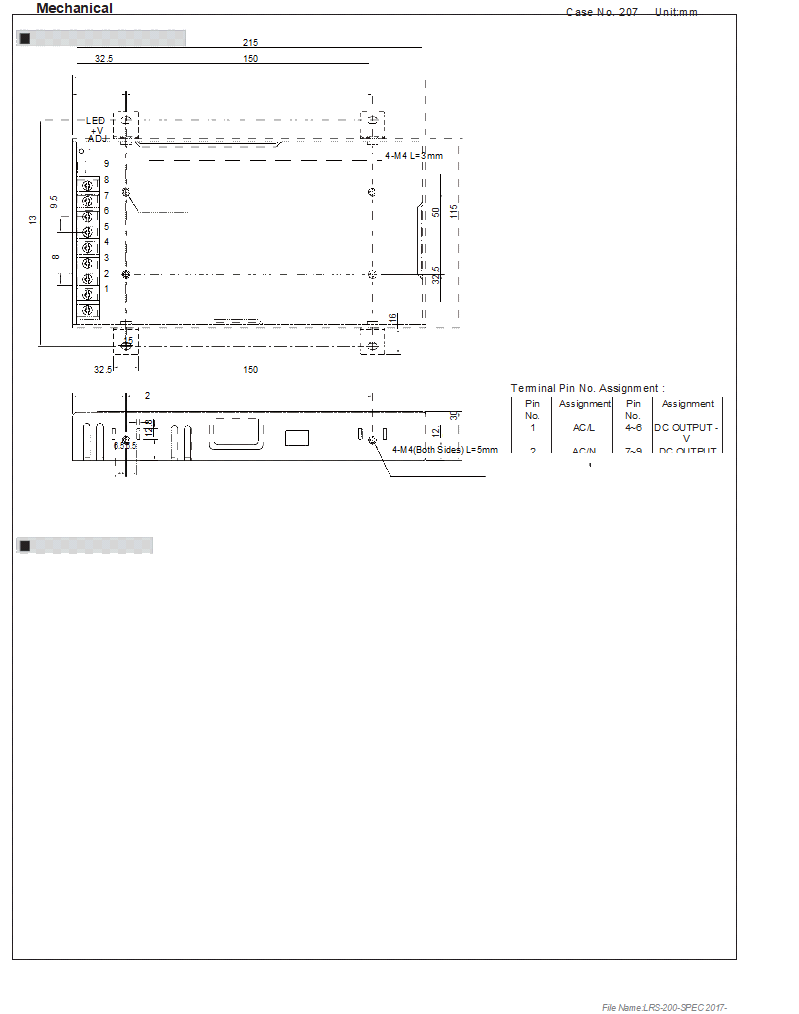

HARDWARE DETAILS
PANEL FUNCTION
DOWNLOADS
LRS-200-5-Specification(download)
