A2C(USB)-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Memory | 2MByte |
|---|---|
| Adaptation | Single color,Double color |
| Pixels | Single:24K ;Double:12K |
| Range | Single:640*16 320*32 Double:320*16 160*32 |
| Function | Multi area display/Multi language version |
| Program NO. | Support 128 program,Each program 16 zones |
| Area type | Text/Image/Animation/Time/Analog clock/Timer/Temperature |
| Frame mode | Program Water frame/Area Water frame |
| Clock | Digital clock/Analog clock/Countup/Countdown |
| Communication | USB port |
| Display Port | 1*HUB08 2*HUB12 |
| Sensor | Temperature Sensor |
| Brightness | 16 Level brightness, Automatically adjust the period of time |
| Remote | Support Timing Switch/Software Switch |
| Voltage | 3.5V~6V |
| Max Power | <1W |
| Remote | Support Timing Switch/Software Switch |
| Temperature | -40℃-85℃ |
| Secondary Development | DLL |
| Software | LED Player 6.0 |

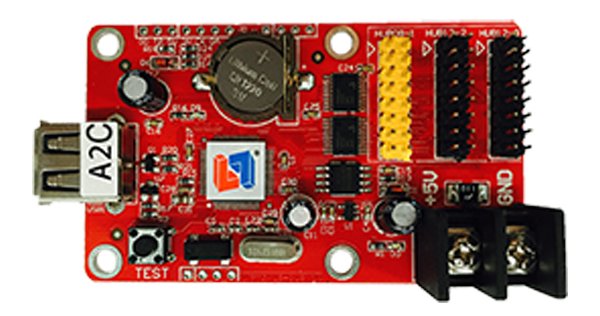

HARDWARE DETAILS
.png)
| Number | Interface Name | Description |
|---|---|---|
| 1 | Multifunction button | Can support： 1.Test LED panel 2.Restore factory settings |
| 2 | HUB12 Port | Connect HUB12 module |
| 3 | 5V Power Port | Wide voltage input 3.5V-6V |
| 4 | USB Port | USB Port |
DIMENSIONAL DRAWING
.png){kind=spacer}
DOWNLOADS
A2C-Specification(download)
