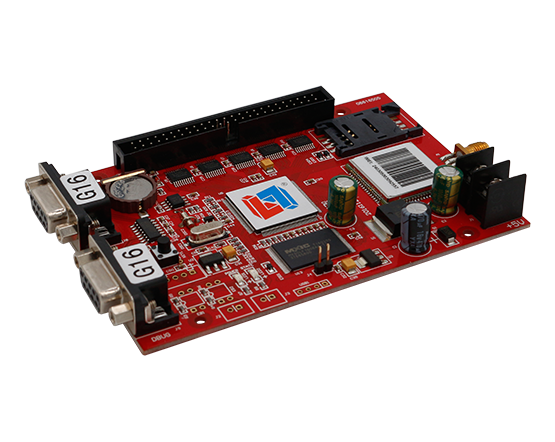

G16(GPRS)-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
7. Naming can quickly know supported height;
8. T series(with LAN ports) control card support LAN, WAN communication, support cluster control;
9. Compatibile with most USB disk,long communication distance (U disk extension distance up to 10 - 15 m);
10. Support wide voltage 3.5 V-6 V , support stable work during 40 ?-85 ? ;
11. Support M10 led module ;
12. WIFI controller support PC, android, IOS system, support cluster management;
13. GPRS controller without configuration, B/S architecture without software, through WEB platform to update ;
14. GPRS controller support the weather forecast , automatically updated every day;
15. Bank proprietary software, adaptive screen size, hierarchical management authority;
16. All series controllers supports secondary development;
| PRODUCT MODEL | G16 GPRS Controller |
|---|---|
| FOR Screens | 3.75,7.62, P10 to P20 |
| PIXEL(Resolution): | Single color 256K ,64(H)*4096(W) ,128*2048,256*1024 |
| Double color | 128K, 32(H)*4096(W),64*2048,128*1024,256*512 |
| COLOR: | RED,GREEN,YELLOW |
| USAGE | Outdoor, Indoor, Semi-outdoor |
| Communication Mode | Wireless GPRS |
| HUB Port No. | 1X50PIN port |
| Software Function | Multi-program/multi-areas’ display |
| Program No. | Support 128 programs,16 areas for each program |
| Area Type | Text/Image/ digital clock/analogue clock /timer/animation |
| Frame Mode | Most advanced colorful / magic graphics frame/Area frame |
| Time Mode | Analogue clock/digital clock; Positive |
| timing and counting-down | timer |
| Date Mode | MM/DD/YY, YYYY-MM-DD,DD/MM/YYYY |
| Remote control | Remote control by GPRS WEB Server |
| Brightness Adjustment | Yes |
| Power on/off Mode | Auto powered on/off and timing powered on |
| Voltage | 5V(3.5V~6.5V ) |
| Maximum power | ≤1.5W |
| Temprature | 40°C~85°C |
HARDWARE DETAILS
.png){kind=spacer}
| Item | Interface Name | Description |
|---|---|---|
| 1 | 50PIN port | Connect HUB board |
| 2 | DB9 port | DB9 serial port |
| 3 | Spare | DB9 port DB9 serial port |
| 4 | Multi-function button | 1. Test LED panel 2. Reset to defaults |
| 5 | Status indicator | Indicating working state |
| 6 | IMEI Number | Same with the terminal number in server |
| 7 | 5V Power supply Voltage | range support 3.5V-6V |
| 8 | GMS antenna interface | Connect to the antenna |
| 9 | SIM card slot | Put the SIM card inside |
DOWNLOADS
G16(GPRS)-Specification(download)
