Location:  products -> listen Products -> FULL COLOR LED display -> LS-Q1-50
Product Name | Asynchronus and Synchronus Controller |
---|---|
Scan Type | 1/2,1/4,1/8,1/16,1/32(any scan type from 1 to 32) |

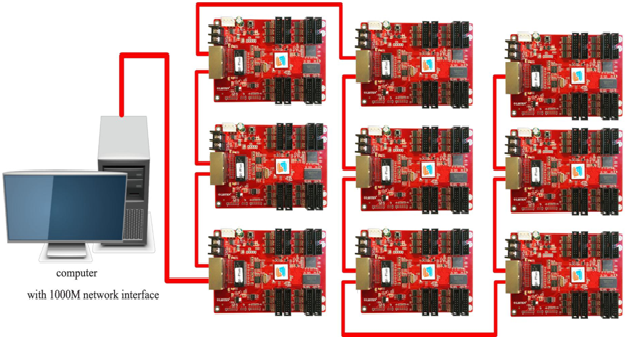

Supported range: | 256*256 pixel by 1pcs of Q1, Max.65536*65536 by cascade settings |
Grey level | 65536 |
Refresh rate Max | 16KHZ |
Serial Frequency | 1MHz~31.25MHz |
Number of Data group | 16 Groups RGB Signal |
Cascade Number | Max.65536pcs |
Communication type | 1000MB LAN Port |
Memory | 8Gbit(1GB),32Gbit(4GB)(optional) |
Feature | Brightness protection,offline detection,smart scan,support any led module |
Working Tempature | -40℃~85℃ |

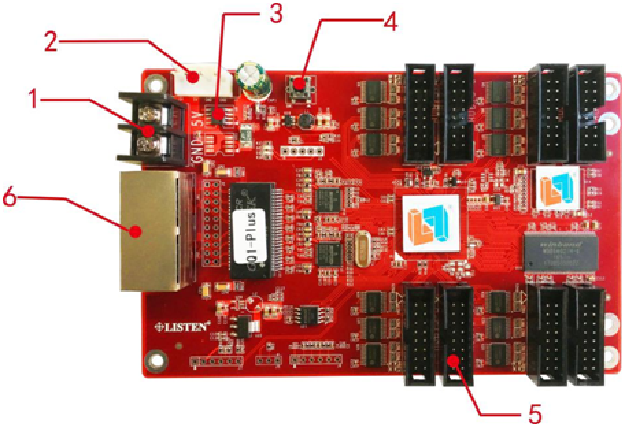

item | interface name |
---|---|
1 | 5V power port |
2 | 5Vpower plug |
3 | 5V power source reversal connection defense |
4 | Test key |
5 | HUB75E output port |
6 | 1000M network interface |
← Inforamtion given above are Mention by Listen Company Products ←
