    Location:  products -> listen Products -> LED 7 color controller -> LS-XC4-M(USB LAN)

    1. The software no need to choose model;
    2. Support DIY LOGO when power on ;
    3. Support USB-disk to read back the parameter ;
    4. Unique preview window can be separated ;
    5. Concise and beautiful new UI design, more easier and flexible to use ;
    6. Support regional automatic alignment, support regional adsorption function;
    LS-XC4M(USB & LAN)Full Descrition
    Memory 2MByte
    Suitable for Seven Color and Full Color LED Module
    Support Range 2048*16640*64(4 scan) 320*128(16 scan)
    Software Function Cluster management/Multi-program editing/Multi-area display/More language
    Program NO. Support 128 program,Each program 16 zones
    Area type Text/Image/Animation/Time/Analog clock/Timer/Temperature
    Frame mode Program Water frame/Area Water frame
    Clock Digital clock/Analog clock/Countup/Countdown
    Communication Port 4XHUB08,4XHUB75
    Sensor Temperature Sensor
    Brightness 16 Level brightness, Automatically adjust the period of time
    Remote Support Timing Switch/Software Switch
    Voltage 3.5V~6V
    Max Power <1W
    Temperature -40℃-85℃
    Secondary Development DLL
    Software LED Player 6.0

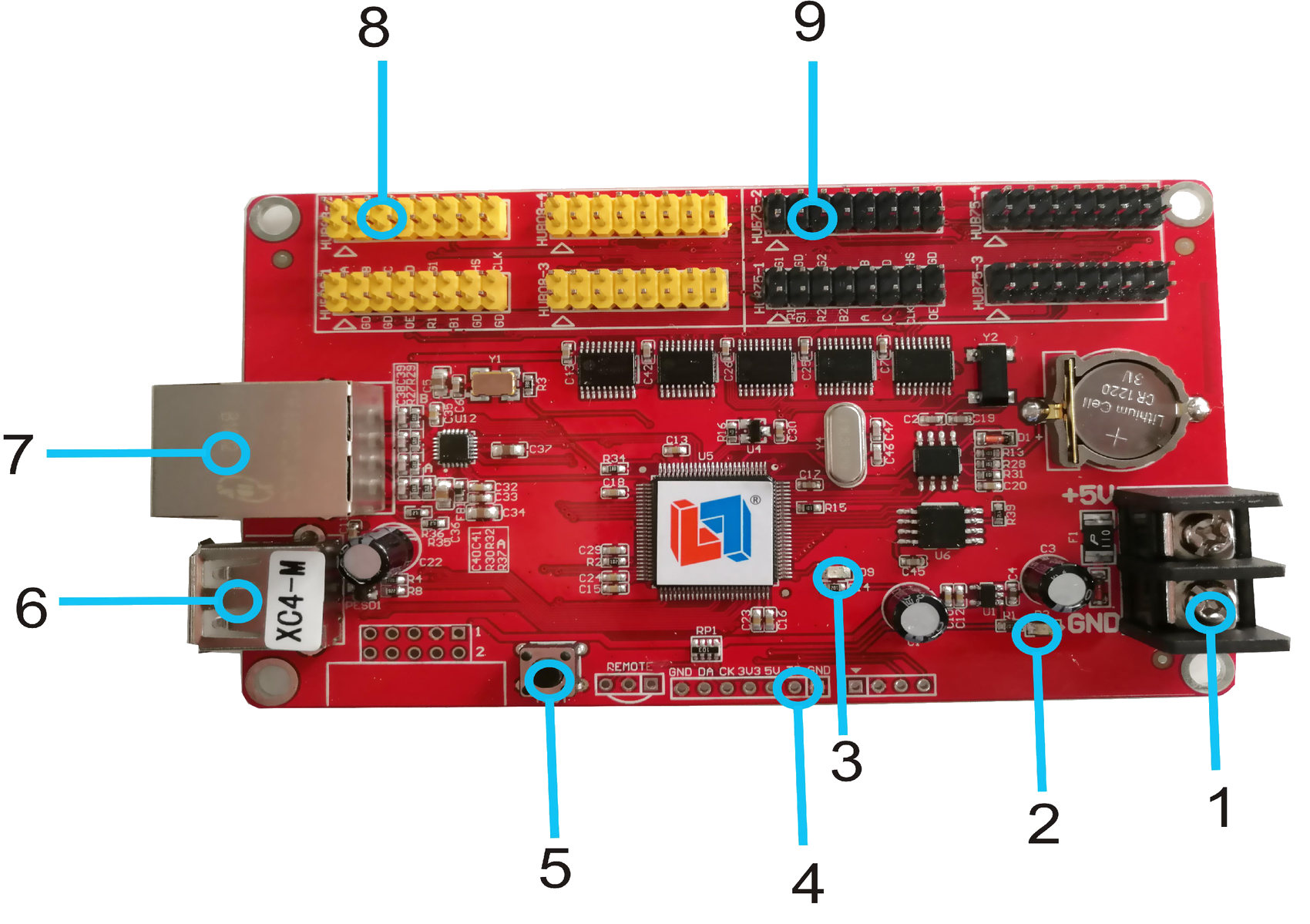

    iteminterface namedescription
    1 +5V Power Supply Voltage range support 3.5V-6V
    2 +5V Power indicator Indicating power state
    3 Status indicator Indicating working state
    4 Sensor port Connect temperature sensor
    5 Multi-function button 1.Test LED panel 2.Reset to defaults
    6 USB Port USB Port
    7 Ethernet port 100MB LAN Port
    8 HUB08 Port Connect to modules with HUB08 port
    9 HUB75 Port Connect to modules with HUB75 port


    ← Inforamtion given above are Mention by Listen Company Products ←
