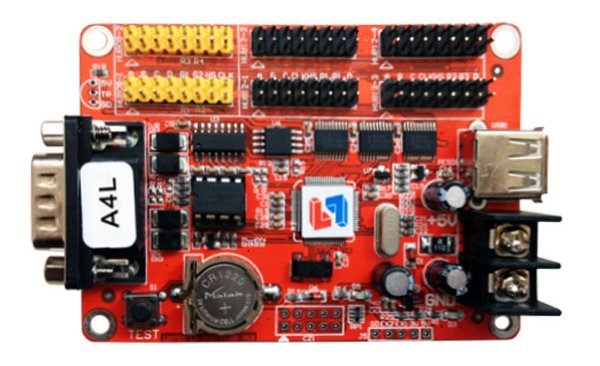

    Location:  products -> listen Products -> LED Display Controller cards -> A-series -> A4L(USB COM)

    1. The software no need to choose model;
    2. Support DIY LOGO when power on ;
    3. Support USB-disk to read back the parameter ;
    4. Unique preview window can be separated ;
    5. Concise and beautiful new UI design, more easier and flexible to use ;
    6. Support regional automatic alignment, support regional adsorption function;
    A4L(USB & COM)Full Descrition
    Memory 2MByte
    Adaptation Single color,Double color
    Pixels Single:32K ;Double:32K
    Range Single:2048*16 2048*32 1344*48 1024*64   Double:2048*16 1024*32 672*48 512*64
    Function Multi area display/Multi language version
    Program NO. Support 128 program,Each program 16 zones
    Area type Text/Image/Animation/Time/Analog clock/Timer/Temperature
    Frame mode Program Water frame/Area Water frame
    Clock Digital clock/Analog clock/Countup/Countdown
    Communication RS232 and USB port;Customizable RS485
    Display Port 2 *HUB08 port   4* HUB12 port
    Sensor Temperature Sensor
    Brightness 16 Level brightness, Automatically adjust the period of time
    Remote Support Timing Switch/Software Switch
    Voltage 3.5V~6V
    Max Power <1W
    Temperature -40℃-85℃
    Secondary Development DLL
    Software LED Player 6.0
    iteminterface namedescription
    1RTC Button batteryRTC battery, VOLTAGE 3V
    2HUB08 PortConnect to modules with HUB08 port
    3 HUB12 Port Connect to modules with HUB012 port
    45V Power supply Voltage range support 3.5V-6V
    5 Multi-function button 1.Test LED panel 2.Reset to defaults
    6 USB Port USB Port


    ← Inforamtion given above are Mention by Listen Company Products ←
