    Location:  products -> listen Products -> LED Display Controller cards -> A-series -> A4(USB)

    1. The software no need to choose model;
    2. Support DIY LOGO when power on ;
    3. Support USB-disk to read back the parameter ;
    4. Unique preview window can be separated ;
    5. Concise and beautiful new UI design, more easier and flexible to use ;
    6. Support regional automatic alignment, support regional adsorption function;
    7. Naming can quickly know support height;
    8. T series(with LAN ports) contrl card support LAN, WAN communication, support cluster control;
    9. Compatibile with most USB disk, long communication distance (U disk extension distance up to 10-15 m);
    10. Support wide voltage 3.5 V-6 V, support stable work during 40 ? - 85 ?;
    11. Support M10 led module ;
    12. WIFI controller support PC, android, IOS system, support cluster management;
    13. GPRS controller without configuration, B/S architecture without software, through WEB platform to update ;
    14. GPRS controller support the weather forecast , automatically updated every day;
    15. Bank proprietary software, adaptive screen size, hierarchical management authority;
    16. All series controllers supports secondary development;

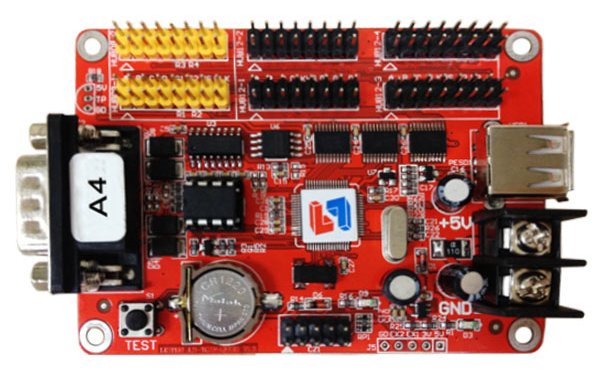

    A4(USB & COM)Full Descrition
    Memory 2MByte
    Adaptation Single color,Double color
    Pixels Single:32K;Double:16K
    Range Single:2048*16 1024*32 672*48 512*64   Double:1024*16 512*32 336*48 256*64
    Function Multi area display/Multi language version
    Program NO. Support 128 program,Each program 16 zones
    Area type Text/Image/Animation/Time/Analog clock/Timer/Temperature
    Frame mode Program Water frame/Area Water frame
    Clock Digital clock/Analog clock/Countup/Countdown
    Communication USB port
    Display Port 2 *HUB08 port   4* HUB12 port
    Sensor Temperature Sensor
    Brightness 16 Level brightness, Automatically adjust the period of time
    Remote Support Timing Switch/Software Switch
    Voltage 3.5V~6V
    Max Power <1W
    Temperature -40℃-85℃
    Secondary Development DLL
    Software LED Player 6.0

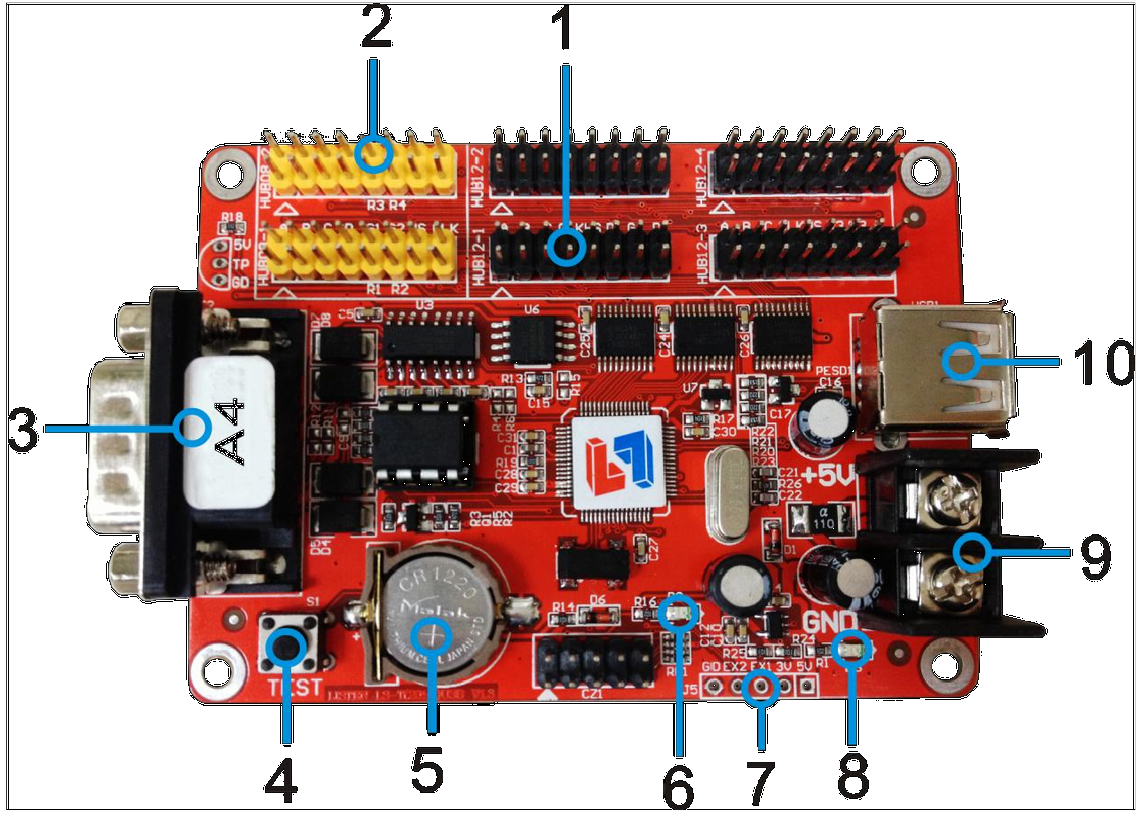

    NumberInterface NameDescription
    1HUB12 Port ConnectHUB12 module
    2HUB08 Port ConnectHUB08 module
    3DB9 portDB9 serial port
    4Multifunction buttonCan support: 1.Test LED panel 2.Restore factory settings
    5 RTC Button batteryRTC Power,Voltage 3V
    6Status indicatorIndicating working state
    7Sensor portConnect TEMP sensor
    85V Power indicatorIndicating power state
    95V Power PortWide voltage input 3.5V-6V
    10USB PortU Disk upgrade port
