W4-WIFI(USB)-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Memory | 2MByte |
|---|---|
| Suitable for | All kinds of single/double color led modules |
| Pixels | Single 16K;Double 8K |
| Range | Single color:2048*16 2048*32 1344*48 1024*64 Double color:2048*16 1024*32 672*48 512*64 |
| Software Function | Multi area display/Multi language version |
| Program NO. | Support 128 program,Each program 16 zones |
| Area type | Text/Image/Animation/Time/Analog clock/Timer/Temperature |
| Frame mode | Program Water frame/Area Water frame |
| Clock | Digital clock/Analog clock/Countup/Countdown |
| Communication | USB port |
| Display Port | 2XHUB08 4XHUB12 |
| Sensor | Temperature Sensor |
| Brightness | 16 Level brightness, Automatically adjust the period of time |
| Remote | Support Timing Switch/Software Switch |
| Working Voltage | 5V |
| Max Power | <1W |
| Temperature | -40℃-85℃ |
| Secondary Development | offer DLL |
| Software | LED Player 6.0 |

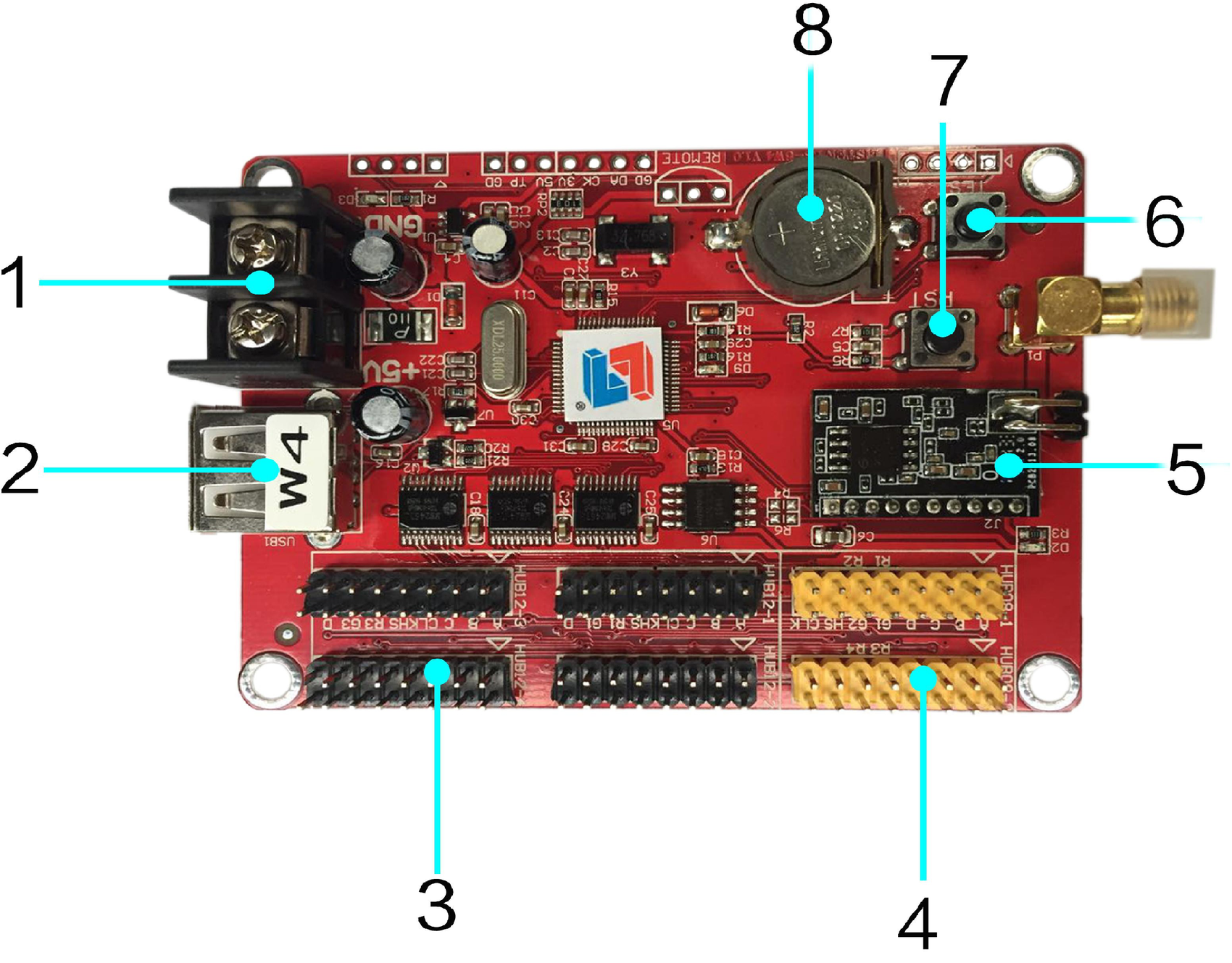

HARDWARE DETAILS
.png){kind=spacer}
| Number | Interface | Description |
|---|---|---|
| 1 | 5V power port | Wide voltage 3.5V-6V |
| 2 | USB interface | USB interface |
| 3 | HUB12 interface Connect | HUB12 interface |
| 4 | HUB08 interface Connect | HUB08 interface |
| 5 | WIFI | WIFI communication |
| 6 | Test button | Test display |
| 7 | Reset button | Reset factory data |
| 8 | RTC button battery | RTC supplying battery, voltage 3V |

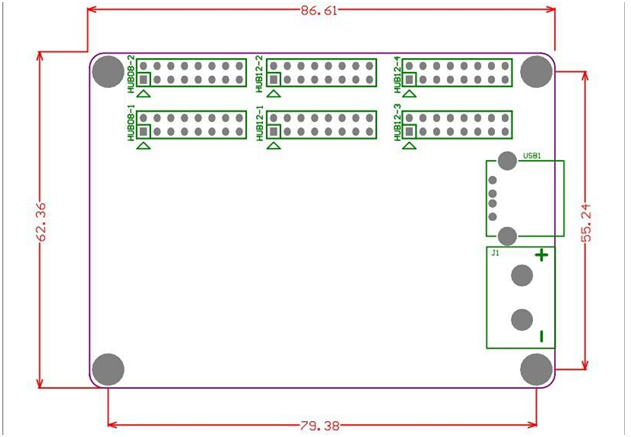

DIMENSIONAL DRAWING
.png)
DOWNLOADS
W4-WIFI-Specification(download)
