LS-V300-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on;
3. Support USB-disk to read back the parameter;
4. Unique preview window can be separated;
5. Concise and beautiful new UI design, more easier and flexible to use;
6. Support regional automatic alignment, support regional adsorption function;
| Support Range | 128*256 pixels |
|---|---|
| Refresh Rate | Receiving card support 123 row width, refresh rate can reach 1920HZ-5000hz, pictures from high-frequency camera or mobile phones wihtout blinking |
| Gray level | 4096--665536 |
| Scan Model | Support 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 Scan |
| PMW Driver chip | Support high refresh chip MB15041,5030 etc. |
| Support anomalous panel | Support LED Module below 64 pixels |
| Connection | Support Single-mode or multi-mode optic-fiber acceptor; Support connect with Multi-function card |
| Others | Receiving card can be used for full-color Synchronous control system; Also can be used for Asynchronous control system, that is, Led MediaPlayer |

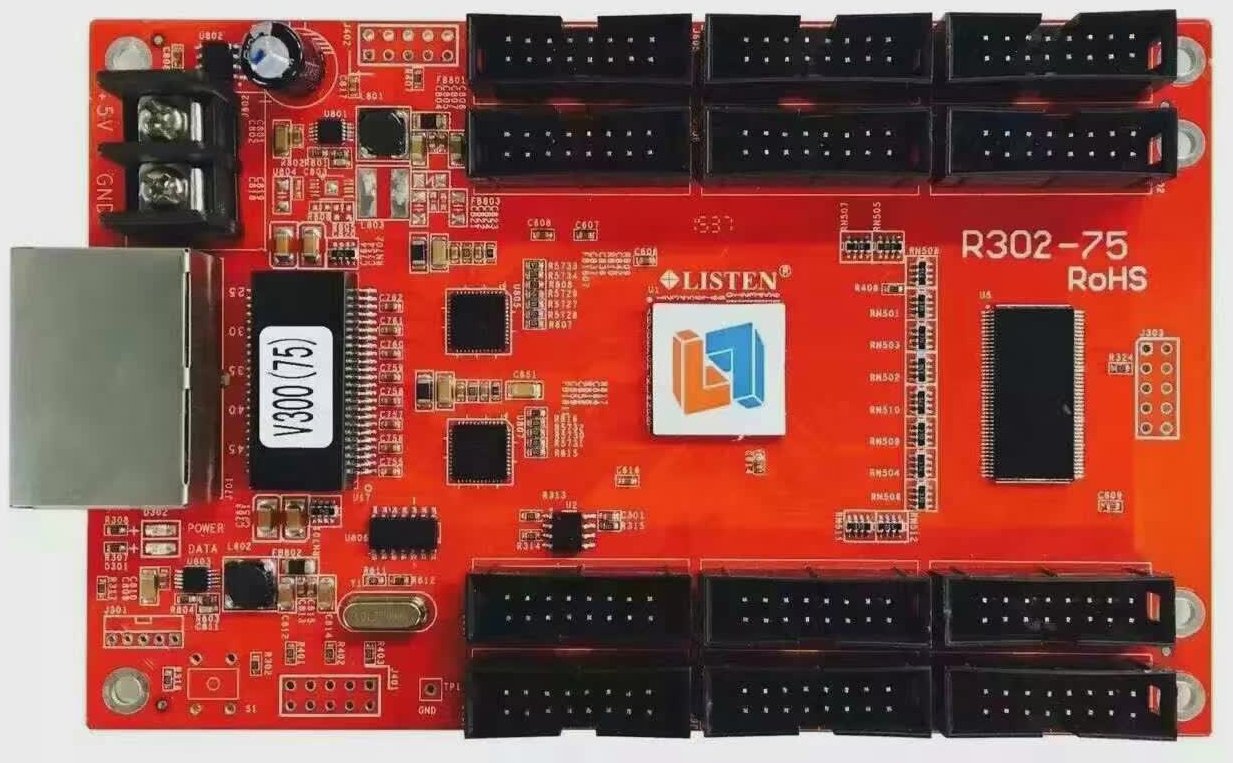

HARDWARE DETAILS
DIMENSIONAL DRAWING
