U2(USB)-CARD SPECIFICATION
FEATURES
1. The software no need to choose model;
2. Support DIY LOGO when power on ;
3. Support USB-disk to read back the parameter ;
4. Unique preview window can be separated ;
5. Concise and beautiful new UI design, more easier and flexible to use ;
6. Support regional automatic alignment, support regional adsorption function;
| Storage | 2MByte |
|---|---|
| Application | All LED screen |
| Pixels | Single 32K pixels double 16K pixels |
| Load | single：2048*16 1024*32 double：512*32 1024*16 |
| Software Function | Multi-area, multi-language Programs 128programs, each has 16 areas |
| Area Type | Image & text/subtitle/animation/time/analog clock/count up & down/temperature |
| Frame | Program water frame/area water frame |
| Clock | Digit clock/analog clock/count up & down |
| Communication Interface | USB Interface |
| Display Interface | 1*HUB08 , 2*HUB12 |
| Sensor | Temperature sensor |
| Brightness Adjustment | 16 level， adjust brightness automatically or via software on time sharing |
| Remote Control | Switch on & off automatically or via software |
| Voltage | 3.5V~6V |
| Max Power | ＜1W |
| Temperature | -40℃-85℃ |
| Secondary Development | DLL dynamic library |
| Auxiliary Software | LED Player 6.0 |

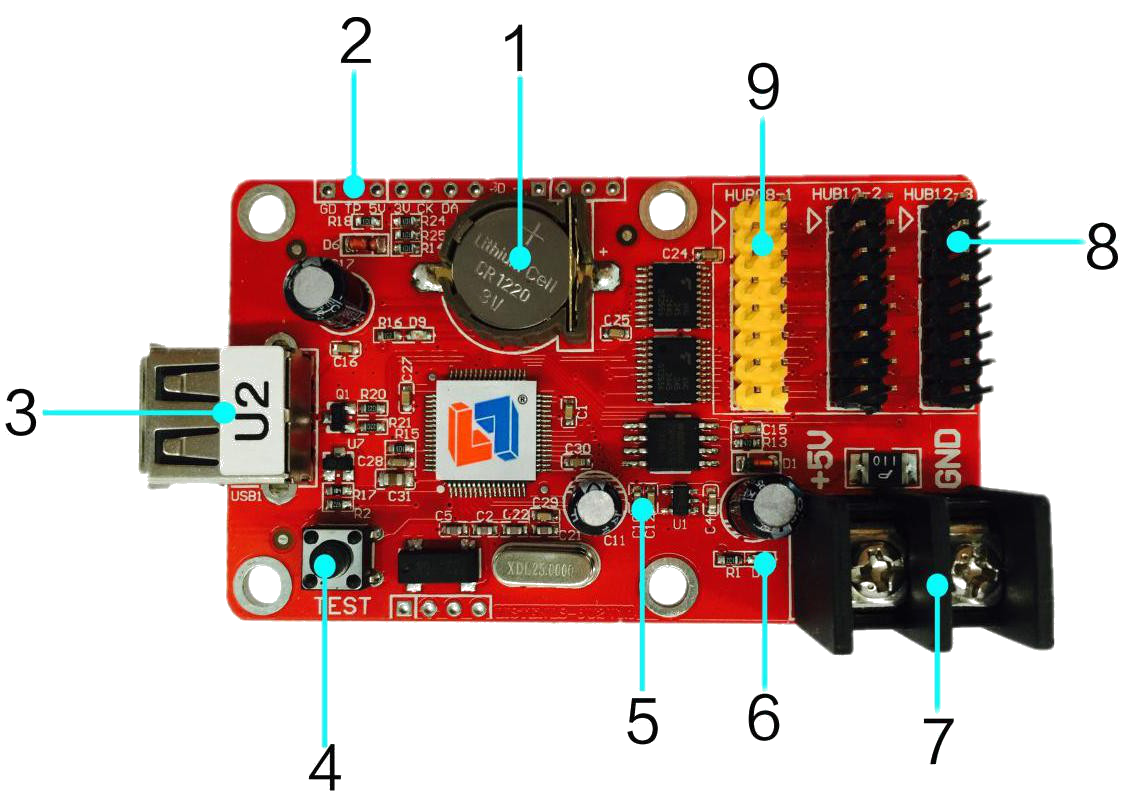

HARDWARE DETAILS
.png){kind=spacer}
| Number | Name | Description |
|---|---|---|
| 1 | RTC Button Battery | RTC supplying battery, voltage3V |
| 2 | Sensor Interface | Connect temperature sensor |
| 3 | USB Interface | USB interface |
| 4 | Multi-functional Button Functions： | 1.test LED screen 2.factory data reset |
| 5 | Operation Light | Show operating status |
| 6 | 5V power Light | Show power status |
| 7 | 5V Power Port | Wide voltage 3.5V-6V |
| 8 | HUB12 Interface | Connect HUB12 Interface |
| 9 | HUB08 Interface | Connect HUB08 Interface |
DIMENSIONAL DRAWING
.png){kind=spacer}
DOWNLOADS
U2-Specification(download)
