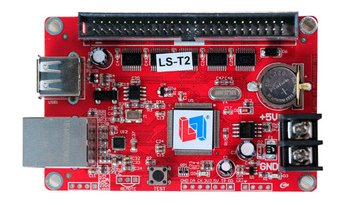

    Location:  products -> listen Products -> LED Display Controller cards -> T-series -> T2(USB LAN)

    1. The software no need to choose model;
    2. Support DIY LOGO when power on ;
    3. Support USB-disk to read back the parameter ;
    4. Unique preview window can be separated ;
    5. Concise and beautiful new UI design, more easier and flexible to use ;
    6. Support regional automatic alignment, support regional adsorption function;
    T2(USB & LAN)Full Descrition
    Memory 2MByte
    Adaptation Single color,Double color
    Pixels Single:128K; Double:64K
    Range Single:2048*64 1360*96 1024*128;   Double:1024*64 512*128
    Function Multi area display/Multi language version
    Program NO. Support 128 program,Each program 16 zones
    Area type Text/Image/Animation/Time/Analog clock/Timer/Temperature
    Frame mode Program Water frame/Area Water frame
    Clock Digital clock/Analog clock/Countup/Countdown
    Communication USB port and million ethernet interface
    Display Port 2*HUB08   4*HUB12
    Sensor Temperature Sensor
    Brightness 16 Level brightness, Automatically adjust the period of time
    Remote Support Timing Switch/Software Switch
    Voltage 3.5V~6V
    Max Power <1W
    Temperature -40℃-85℃
    Secondary Development DLL
    Software LED Player 6.0

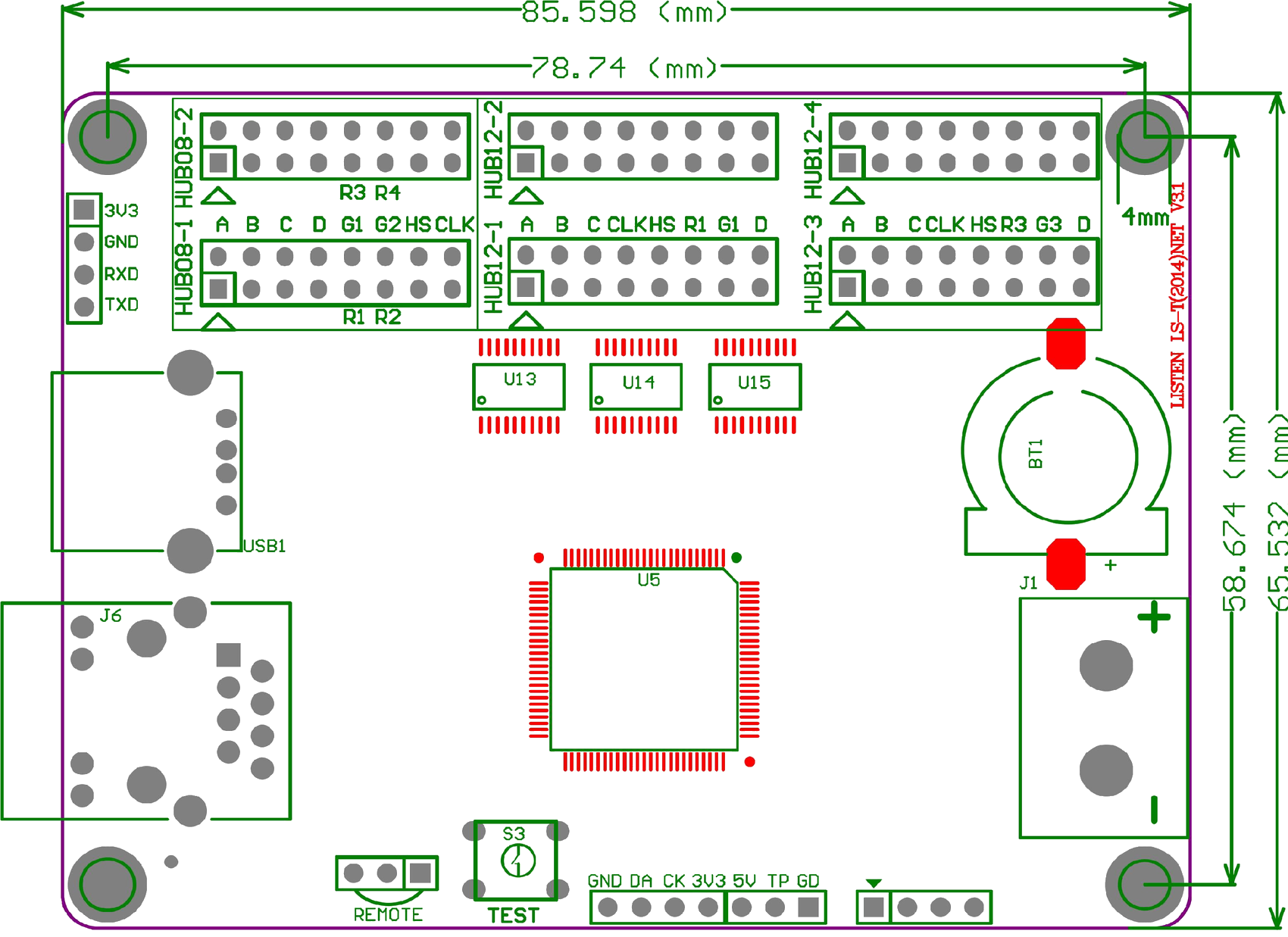

    NumberInterface Name Description
    1 HUB12 Port Connect HUB12 module
    2 HUB08 Port Connect HUB08 module
    3 USB Port USB Port
    4 Ethernet port Million ethernet interface
    5 Multifunction button Can support: 1.Test LED panel 2.Restore factory settings
    6 Status indicator Indicating working state
    7 Sensor port Connect TEMP sensor
    8 5V Power indicator Indicating power state
    9 5V Power Port Wide voltage input 3.5V-6V
    10 RTC Button battery RTC Power,Voltage 3V
